Fabricating parts with intricate geometries? It’s been the bane of designers and engineers forever. Conventional approaches, such as CNC machining or injection molding, hit a wall when you need organic curves and buried features that today’s products require. Enter Multi Jet Fusion 3D printing, which genuinely transforms the equation. The tech makes producing complex 3D designs achievable, economical, and ready for real-world application. Let’s dig into how MJF tackles complicated components, what sets it apart, and why entire sectors are being reshaped by it.
Understanding the Technology Behind Complex Part Production
MJF technology operates on principles that defy conventional wisdom. Traditional manufacturing processes struggle with structural complexity and material diversity, making it difficult to meet the development needs of next-generation products. That barrier has manufacturers pivoting toward additive approaches.
How the Process Creates Intricate Features
Here’s what happens: thin polymer powder layers get spread on a build surface. Inkjet heads deposit fusing agents exactly where solidification should occur. An infrared energy source sweeps across, and those treated zones absorb thermal energy differently, bonding together. Surrounding powder? It becomes your support material, eliminating the need for dedicated structures in most scenarios.
When you’re working with a multi jet fusion 3d printer, you gain precision at the individual droplet level. This voxel-based control delivers walls at 0.3mm thickness and intricate details down to 0.5mm, a territory that was simply unreachable before.
Why It Outperforms Other Methods
SLS relies on a single laser point. MJF? It deploys fusing agents across entire layers at once. The speed difference is massive. FDM falls short on surface finish and isotropy. SLA can’t deliver the mechanical robustness functional parts demand. Thermal distribution stays uniform, giving you reliable properties throughout even the wildest geometries.
Material Strengths for Intricate Geometries
PA12 is your go-to workhorse, 48 MPa tensile strength with stellar detail capture. PA11 provides bio-based alternatives for medical contexts where intricacy meets biocompatibility requirements. TPU introduces flexibility for components that need to bend without fracture. These materials maintain directionally uniform strength, which is critical when you’re engineering lattice structures or organic forms.
Core Strengths That Enable Design Freedom
Advanced additive manufacturing via MJF eliminates restrictions that have constrained designers for generations. Its capabilities reach far beyond basic prototyping.
Self-Supporting Geometries
Angles up to 45 degrees? They print without dedicated supports. The powder bed handles stabilization during fabrication. Undercuts, overhangs, and intricate internal voids don’t create the post-processing headache of removing support structures. Components nest within the build envelope, allowing dozens of sophisticated parts in a single cycle.
Precision at Small Scales
Minimum feature dimensions reliably reach 0.5 mm. Wall thicknesses drop to 0.3-0.4 mm when circumstances demand it, though 0.5 mm offers better consistency. Delicate textures, tiny apertures, and refined features hold their accuracy even in challenging zones of complex assemblies.
Consistent Mechanical Performance
Isotropic strength means a slender lattice member performs identically whether it’s vertical or horizontal. This becomes crucial for 3D printing for intricate parts because you’re not trading strength for complexity. Stress distributes uniformly through irregular forms, and fatigue performance holds even in thin-walled areas under cyclic loading.
Real-World Applications Pushing Boundaries
Industries have moved past the testing phase; this is production now. A chiral-roton metamaterial consisting of 1,013,859 unit cells was printed in just two days, containing approximately 1.7 trillion voxels. That’s the scale of complexity we’re discussing.
Aerospace Components
Lightweight brackets featuring topology-optimized forms substitute traditionally machined elements. Conformal antenna enclosures wrap curved surfaces. UAV airframes integrate attachment locations, cable management pathways, and aerodynamic characteristics into unified components. Air distribution systems with elaborate internal routing boost cooling effectiveness without mass penalties.
Medical Device Innovation
Patient-matched surgical templates mirror individual anatomy with precision. Orthopedic implants incorporate lattice architectures promoting bone integration. Prosthetic sockets conform to residual limb topography while preserving required strength. Anatomical replicas reproduce fine vascular networks for pre-surgical planning.
Automotive Prototyping
Air intake manifolds contain internal geometries optimizing flow characteristics. Dashboard assemblies consolidate multiple pieces while integrating snap connections and mounting features. Custom tooling and fixtures conform to complex component surfaces. Topology-optimized mounting hardware cuts weight without performance compromise.
Design Strategies That Maximize Results
Understanding MJF capabilities is step one; designing parts that leverage these strengths requires specific tactics.
Lattice Integration

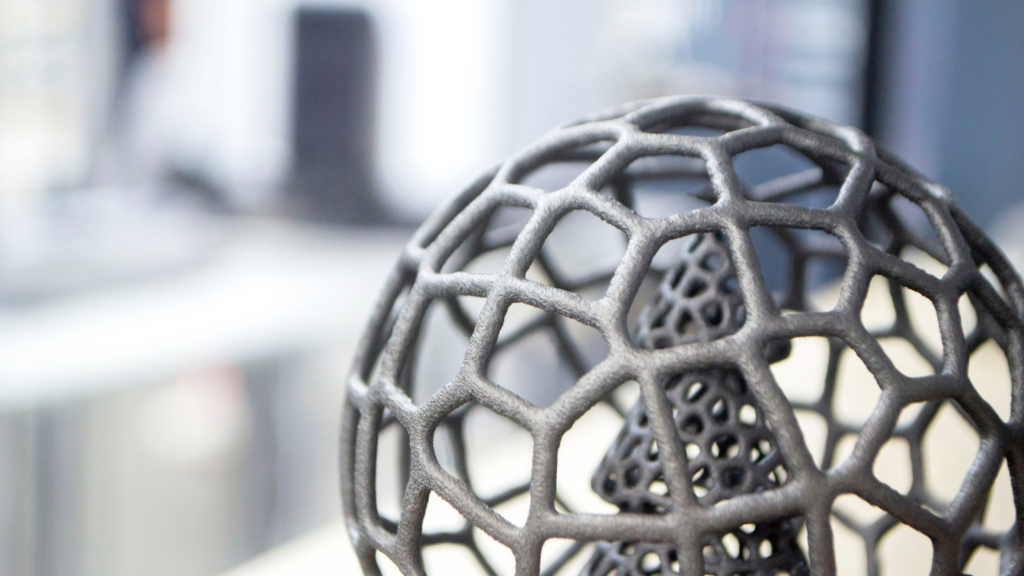

Gyroid and diamond configurations cut weight 30-70% while preserving structural performance. These aren’t merely visual choices. The strength-to-weight relationships let you hit performance benchmarks that solid geometries can’t touch. Computational design software generates these frameworks based on stress distributions.
Internal Features and Channels
Conformal cooling passages follow component contours with 2mm minimum diameters. These concealed pathways can’t be machined into traditional parts. Internal mechanisms, living hinges, and kinematic elements integrate into singular prints. You’re consolidating what previously required 5-10 separate pieces.
Design Guidelines Worth Following
Wall dimensions between 0.5-3mm perform optimally for detailed features. Ribs and bosses follow a different logic than injection molding; draft angles aren’t necessary. Snap-fit connections integrate directly into complex assemblies. Dimensional tolerances typically achieve ±0.3mm for precision mating surfaces, though orientation and component size influence this.
Performance Metrics That Matter
Knowing the numbers builds design confidence. Dimensional precision in XY planes runs approximately ±0.3mm typically, while the Z direction achieves ±0.4mm. Batch-to-batch repeatability stays reliable, essential for production quantities.
Surface texture emerges from the printer at 6-10 μm Ra. Post-processing techniques like vapor smoothing refine this for aesthetic requirements. Dyeing and coating bond effectively with nylon substrates. Mechanical characteristics remain stable, PA12 yields 48 MPa tensile strength with 20% elongation at break. Impact resistance persists even in thin complex walls.
What’s Coming Next
This technology continues evolving rapidly. Multi-material fabrication with functional gradients is appearing, where varied agents create property transitions across individual parts. AI-powered design optimization forecasts how complex geometries will behave before fabrication. Material options keep expanding into high-temperature polymers, composites, and electrically conductive variants. Industry 4.0 connectivity enables real-time monitoring and digital twins tracking components from conception through manufacturing.
Final Thoughts on Complex Design Manufacturing
Multi Jet Fusion 3D printing eliminates obstacles that’ve made elaborate geometries economically prohibitive or outright impossible. From aerospace mounting hardware to medical implants, this technology produces production-grade components with intricacies that conventional methods can’t replicate.
The fusion of speed, accuracy, and geometric liberty means you’re manufacturing end-use products, not just prototypes, with complexity driving tangible performance advantages. As material portfolios broaden and AI tools advance, we’re merely beginning to explore what becomes possible when design freedom intersects manufacturing reality.
Common Questions About MJF for Complex Parts
Can MJF handle living hinges in complex assemblies?
Absolutely, especially with TPU material. Thin sections from 0.3-0.5mm produce functional hinges. TPU offers excellent flexural endurance, surviving thousands of cycles in integrated assemblies without separate components.
How does complexity affect the cost?
Unlike conventional manufacturing, MJF pricing hinges on volume and build space utilization, not geometric intricacy. Elaborate designs don’t cost extra versus simple ones occupying similar space, making sophisticated features economically practical.
What’s the smallest reliable internal channel size?
Internal passages function reliably at 2mm diameter when horizontal to the build surface. Vertical passages need marginally larger diameters, roughly 2.5-3mm, ensuring proper powder extraction during post-processing.
